| PARAMETER | RANGE/ SPECIFICATION | REMARKS |
|---|---|---|
| Working Capacity | 100 L to 50 KL | Jacketed/Limpet Coil/Cladding available |
| Design Code | ASME Sec.VIII Div.1 /IS 2825 / GMP Standards | Third-party inspection optional |
| Pressure Rating | Atmospheric to 15 kg/cm2 | Hydrotest as per code |
| Temperature Range | Ambient to 300°C | Thermal Oil / Steam / Electric Heating |
| Heating/Cooling Interface | Full Jacket / Half Coil / Limpet Coil | Coil design based on heat transfer requirement |

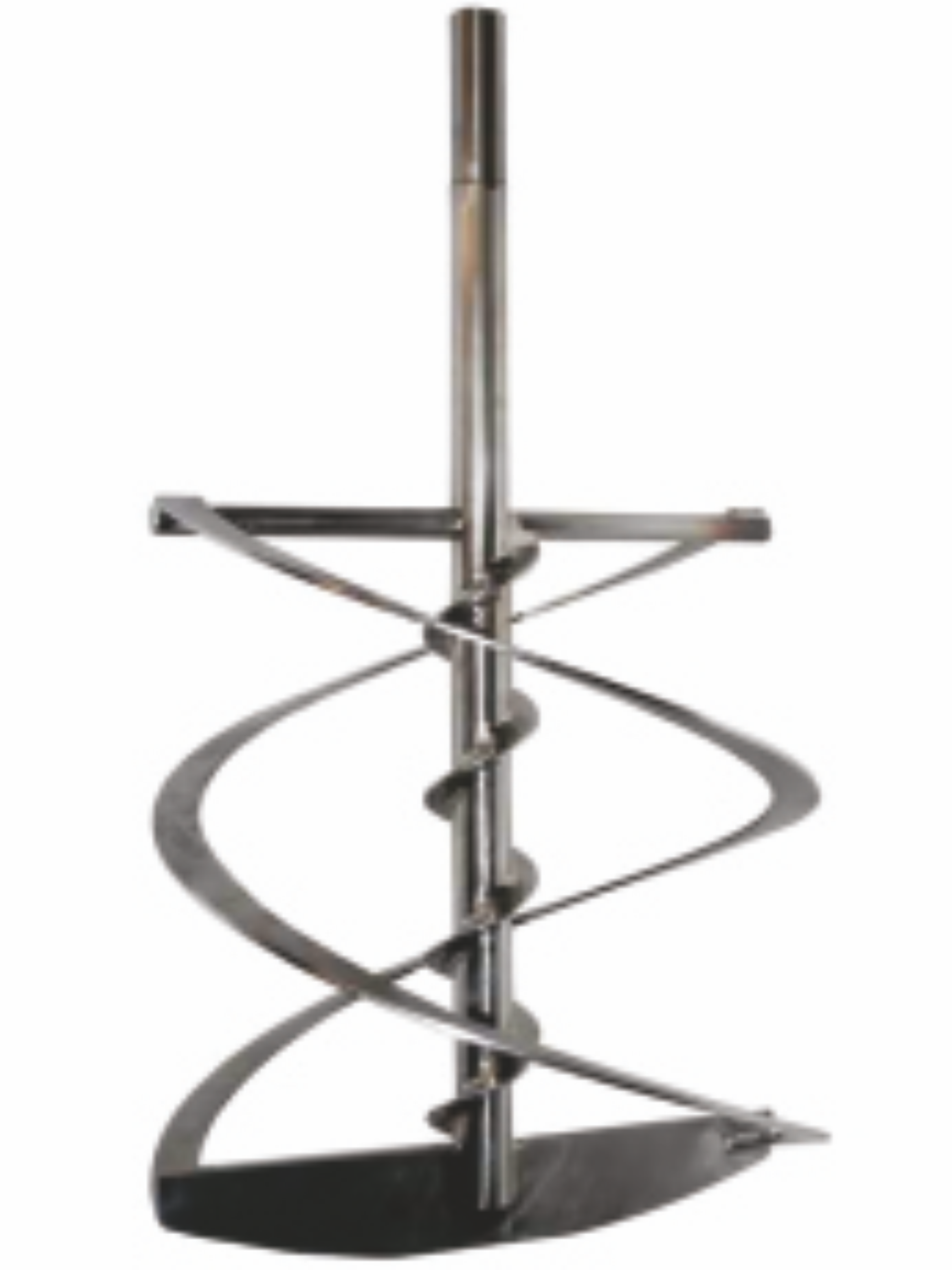

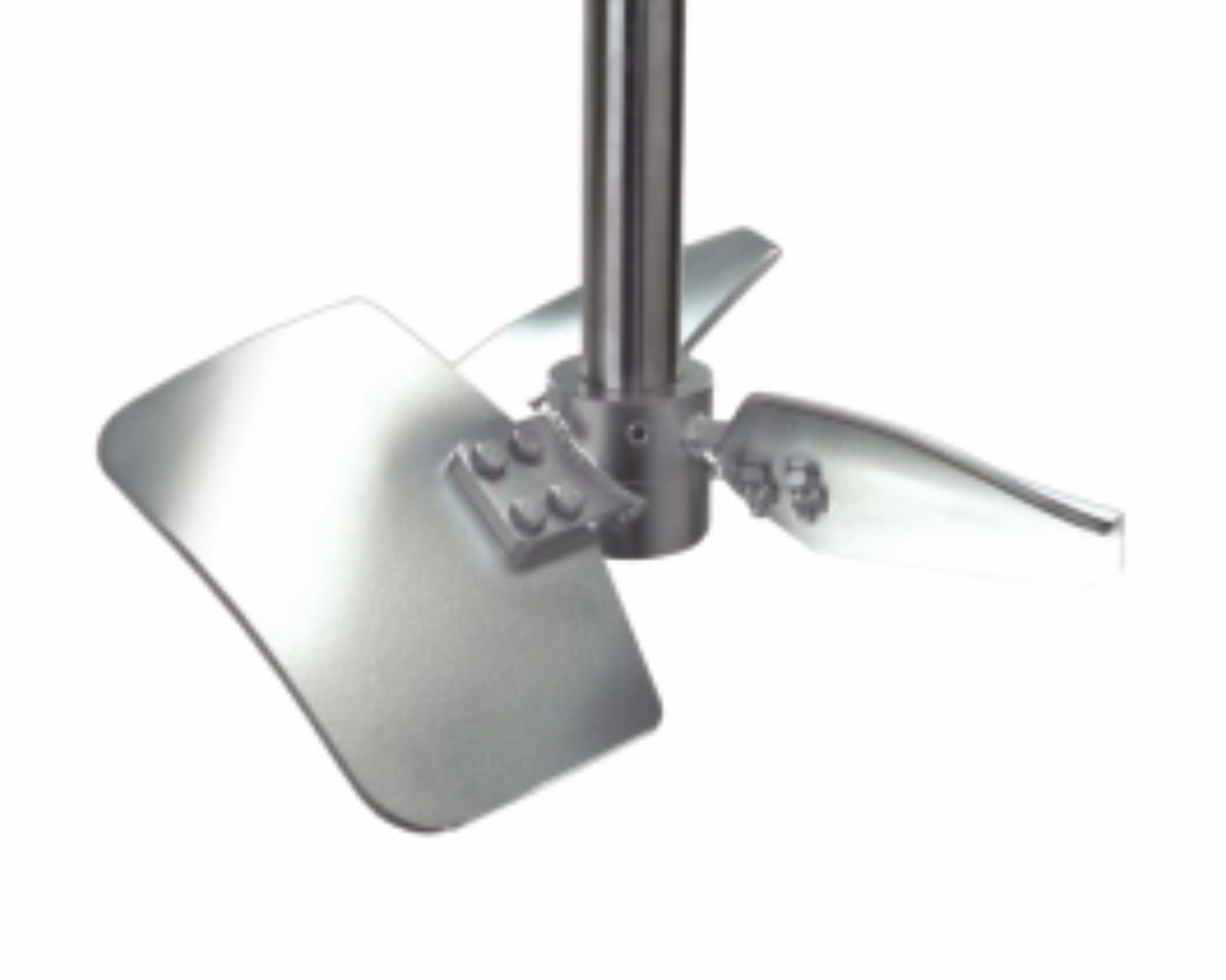

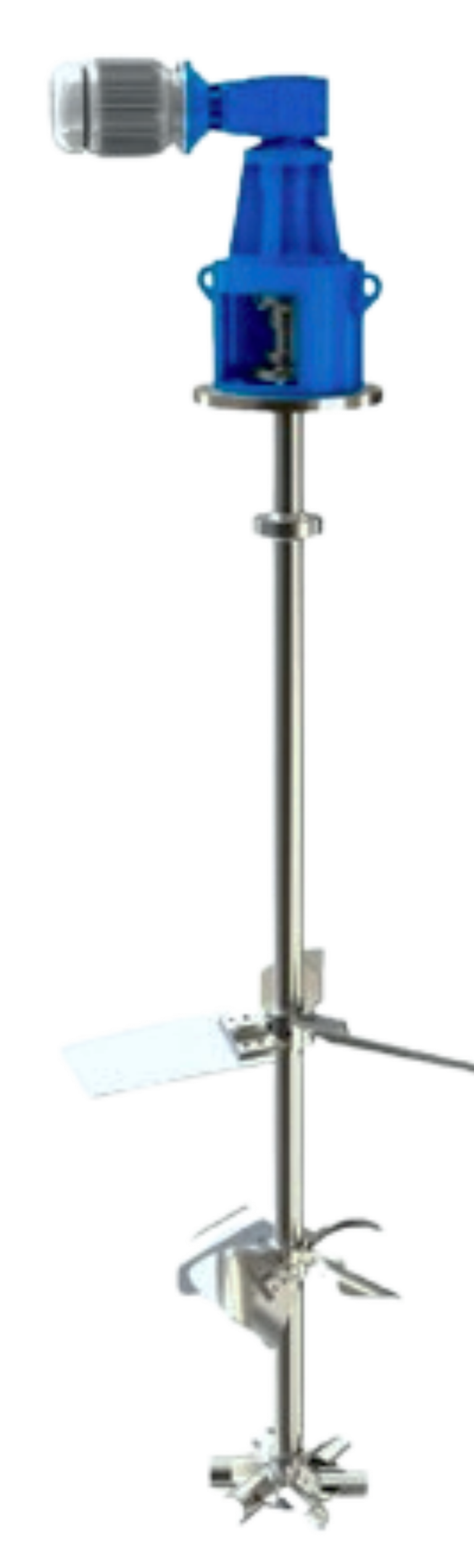

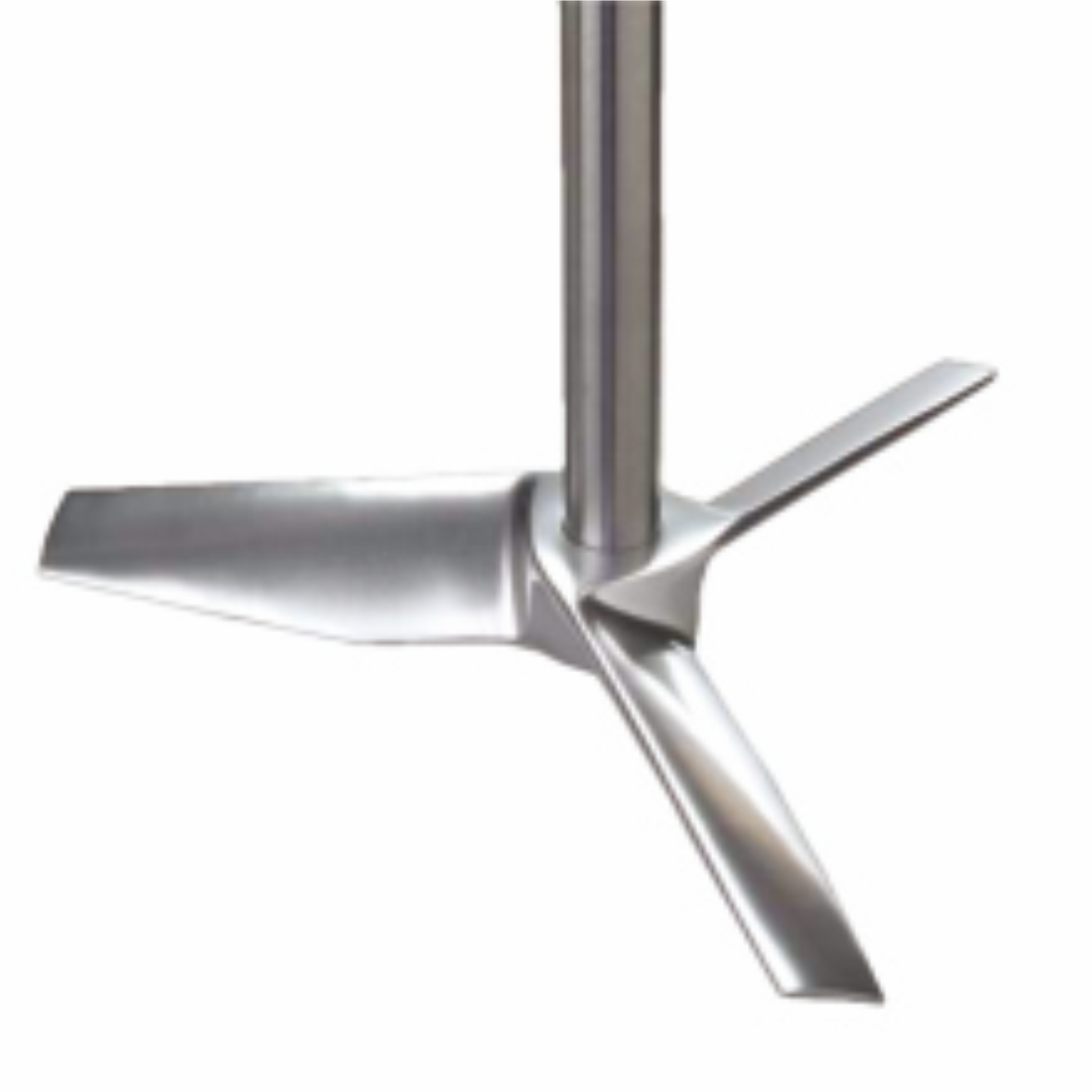

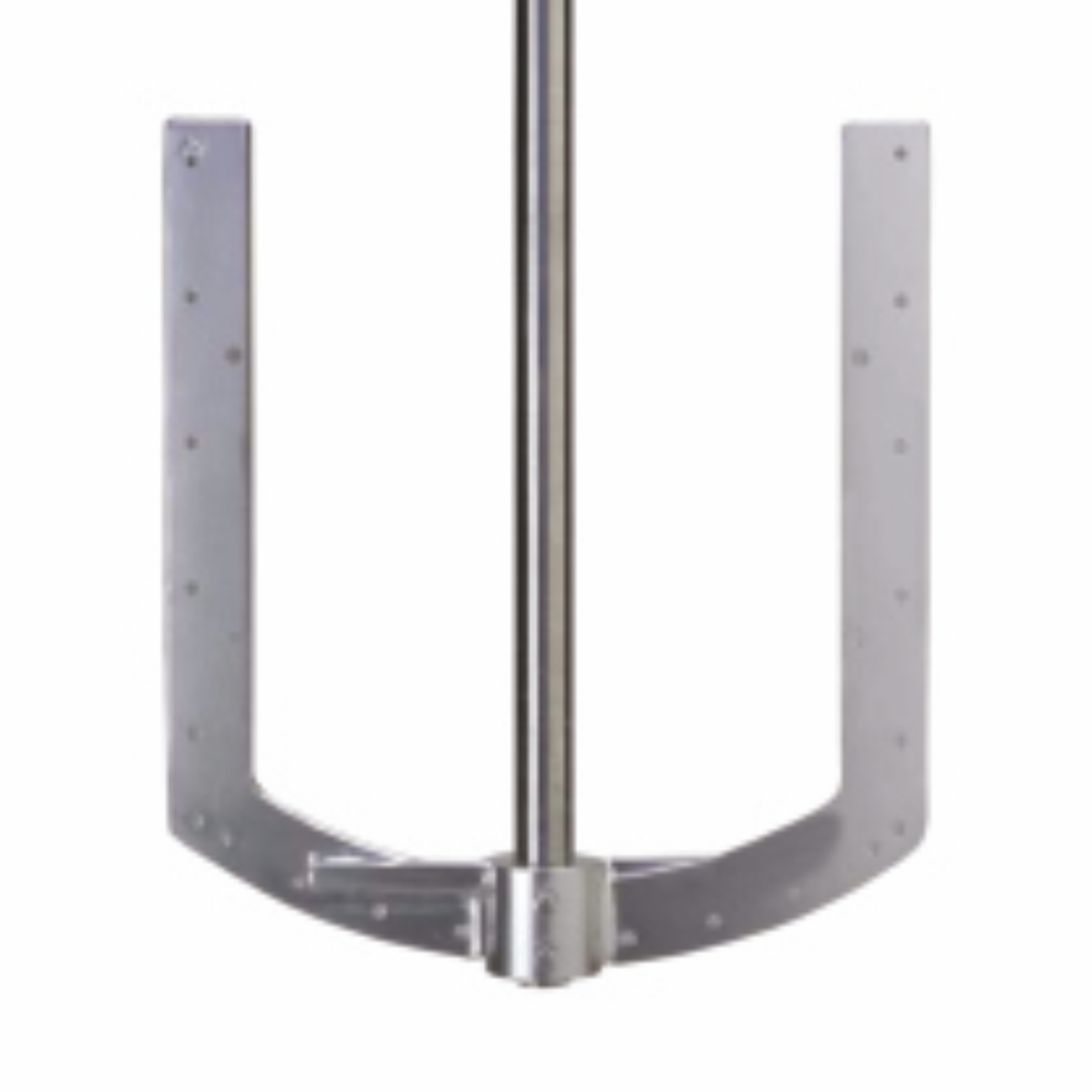

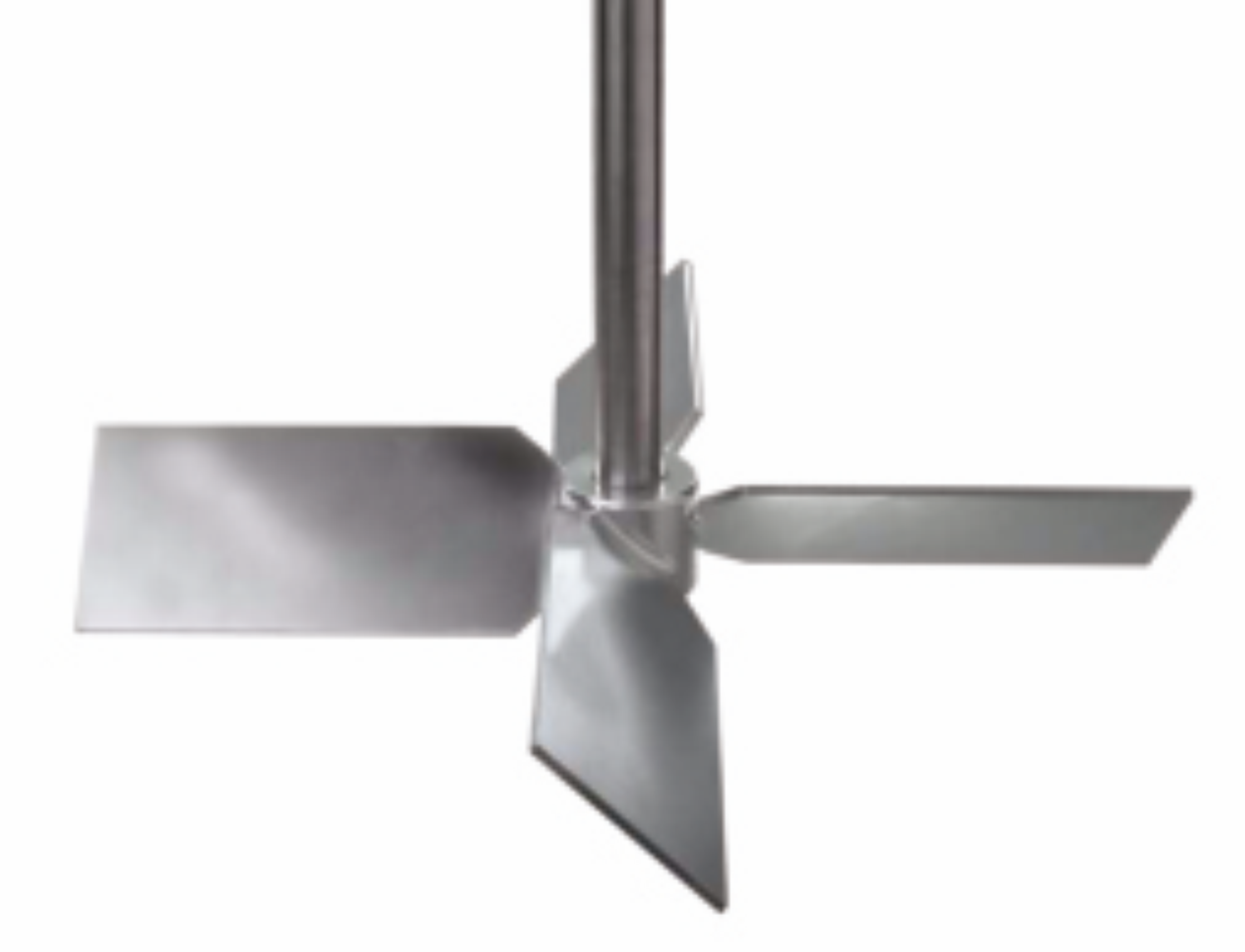

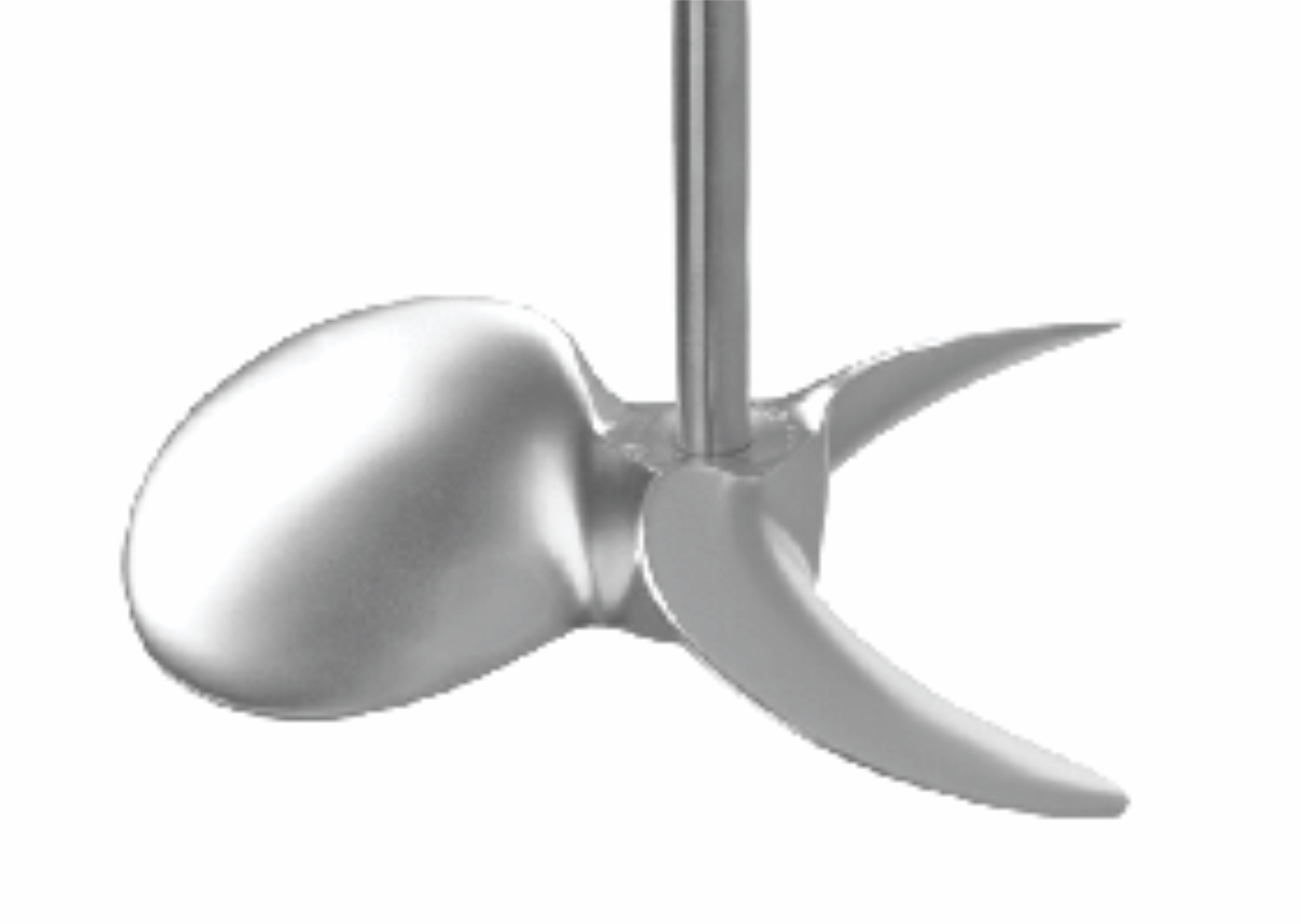

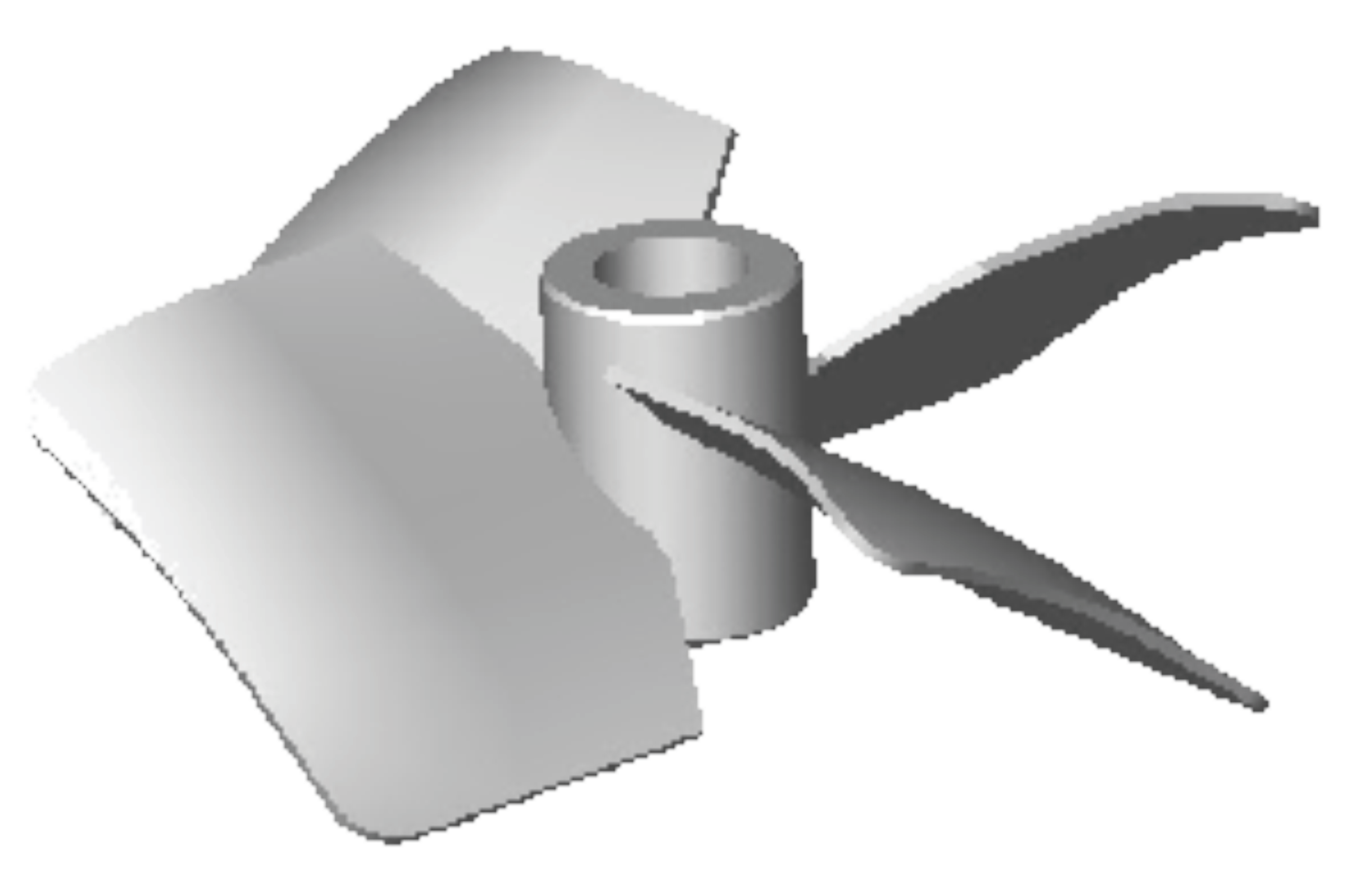

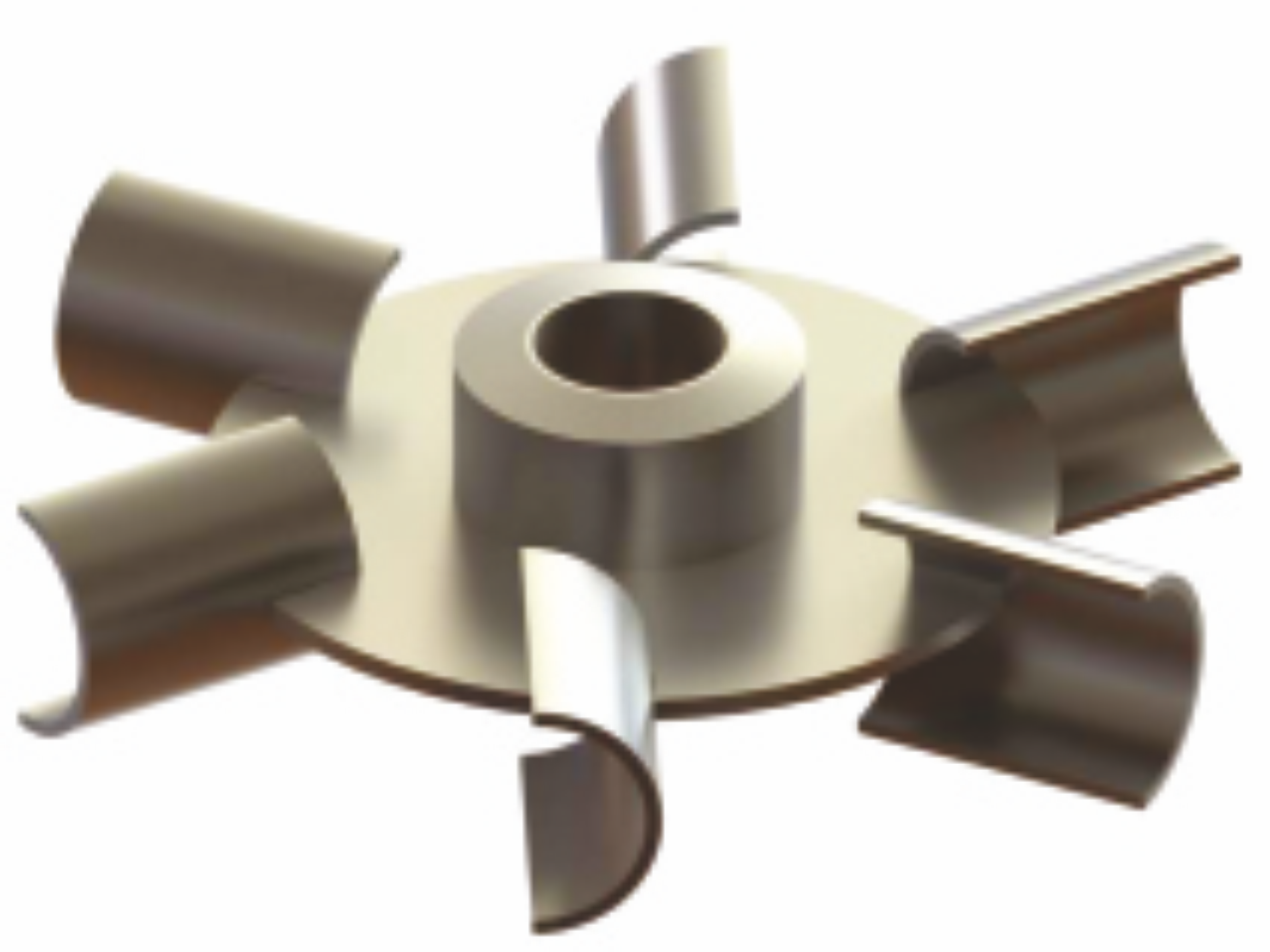

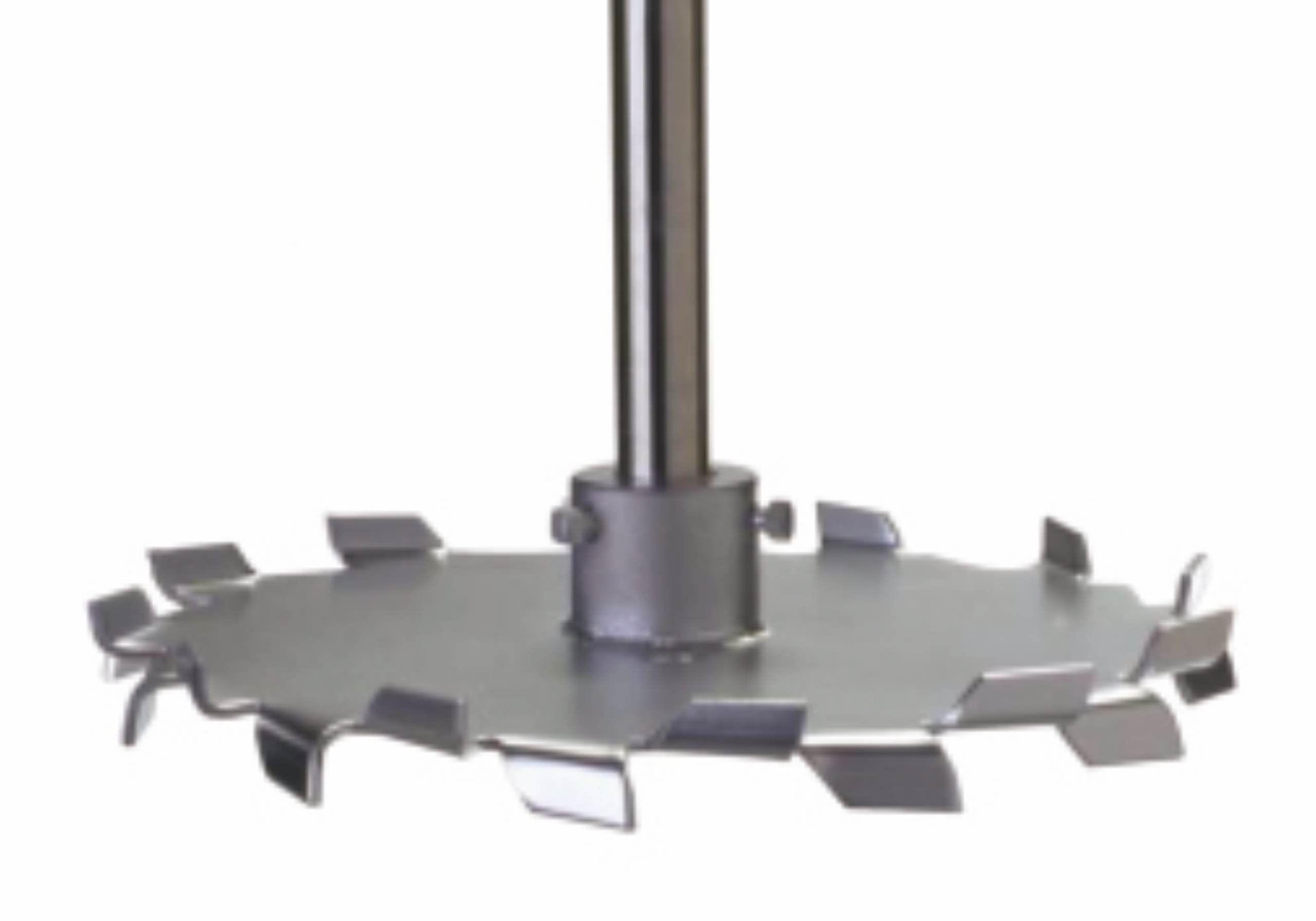

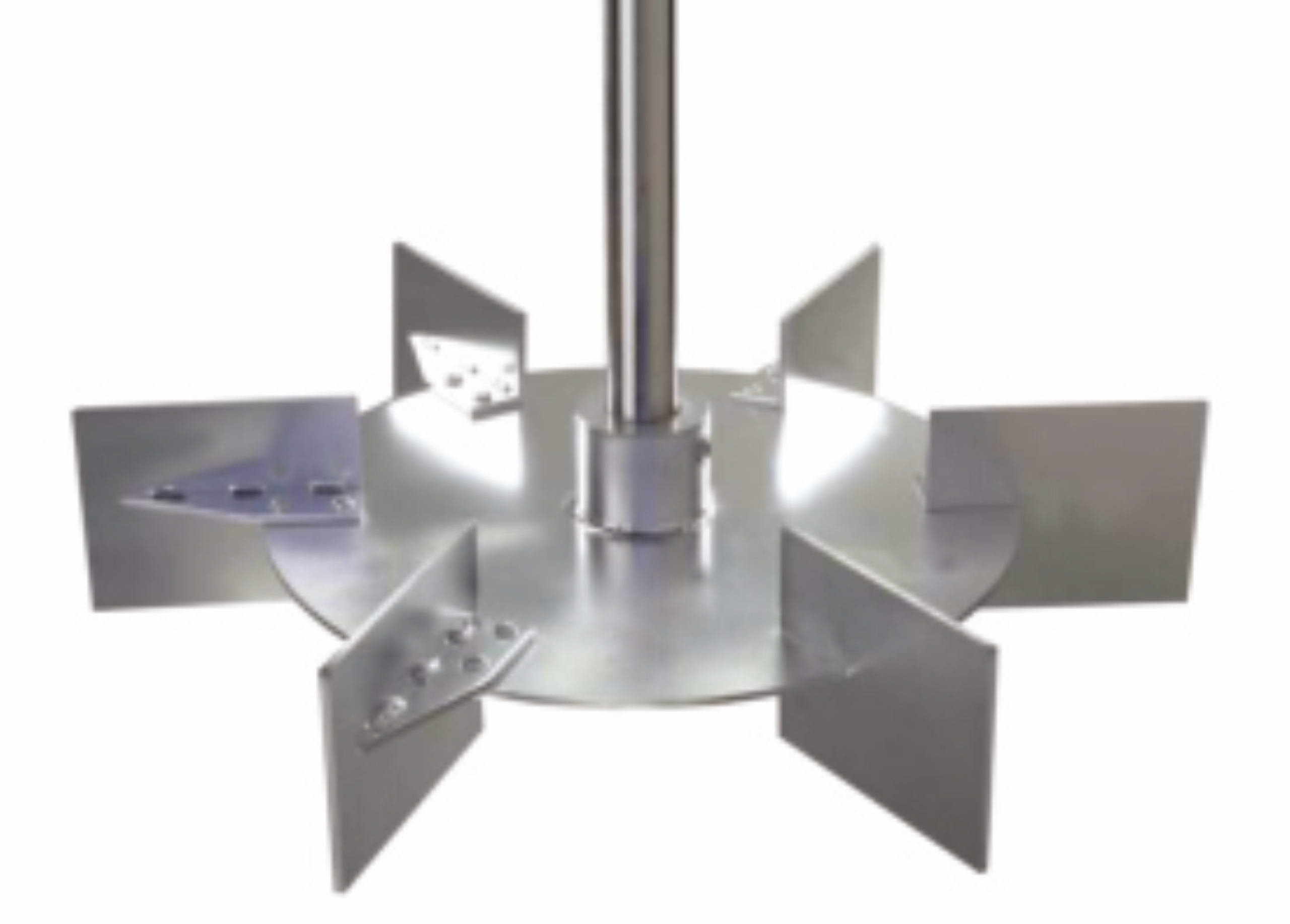

| Agitator Types | Anchor/Turbine/Helical/ Propeller/Hydrofoil | CFD-optimized mixing system |

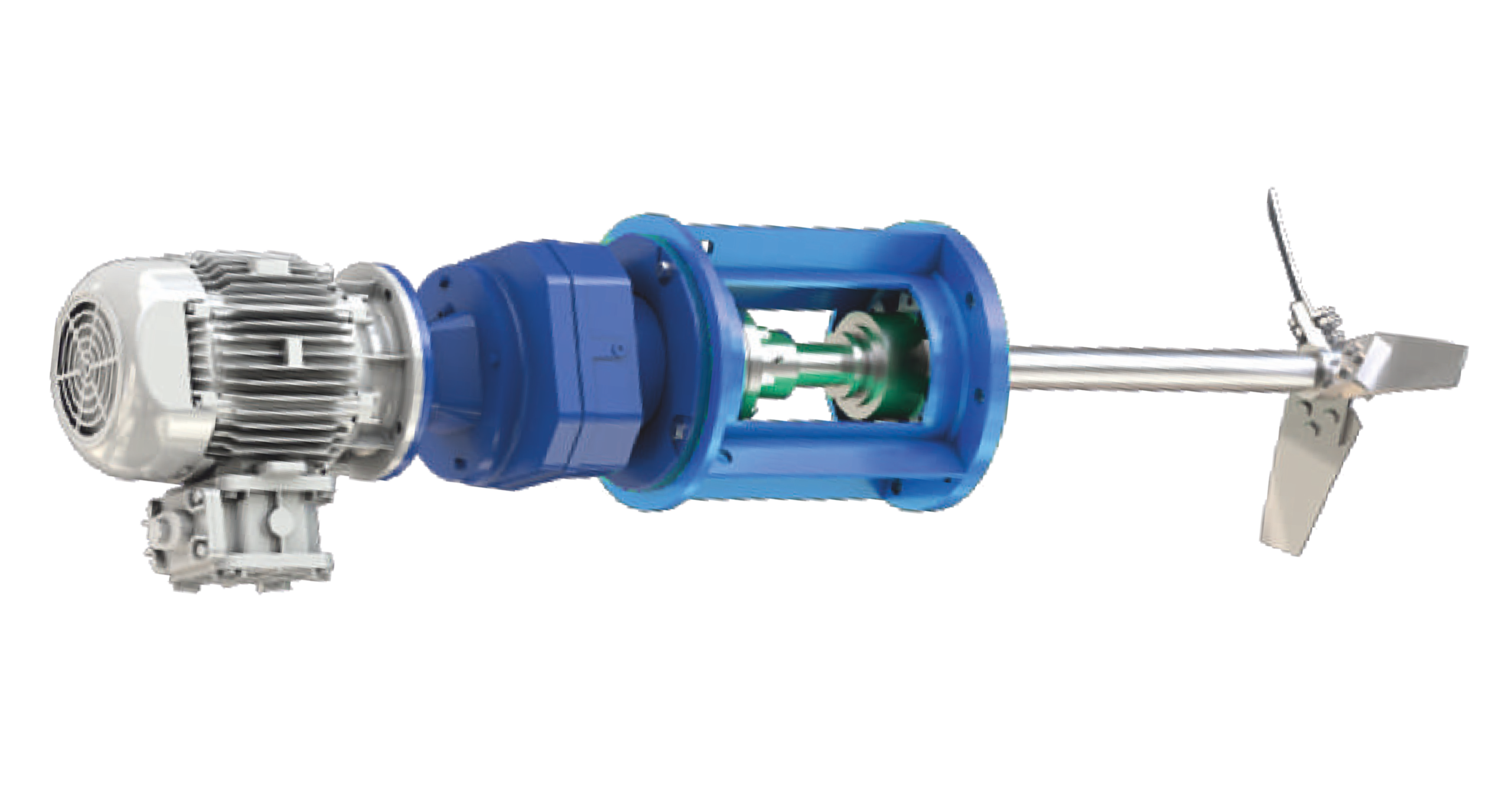

| Motor & Gearbox | IE2/IE3 Motors, Helical/Planetary Gearbox | With / without VFD for speed variation |
| Sealing Arrangement | Stuffing Box/Single or Double Mechanical Seal | For vacuum / corrosive /pressure applications |
| Materials of Construction | MS, SS304, SS316, Duplex SS, Alloy Steel | Corrosion-resistant & GMP compliant |
| Surface Finish | Industrial/Semi-Sanitary/GMP Grade | Internal mirror finish up to 0.4 Ra (optional) |
| Testing & Inspection | Hydrotest/Radiography/Dye Penetrant Test | NABL / Third-party inspection available |
| Instrumentation | Pressure Gauge, Temp Sensor, Level Indicator, Agitator RPM Display | PLC / SCADA automation optional |
| Documenation | GA Drawing, P&ID, QAP, Material Test Certificates | Complete project compliance documentation |
